| Brass Hinges |
 |
|
|
|
Brass Butt Cut Hinges

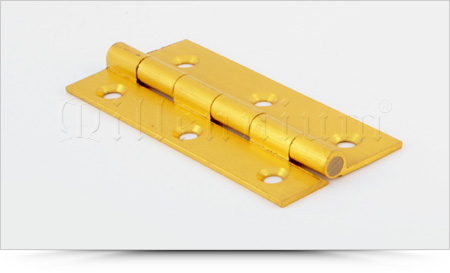

Brass Butt Hinges
|
|
| CODE NO. |
SIZE |
| INCH |
MM |
| 3X3/32"( THICKNESS 2MM) |
| CHM-101 |
3"X3/8X5/8 |
75X9X16 |
| CHM-102 |
3"X½X¾ |
75X12X19 |
| CHM-103 |
4"X½X¾ |
100X12X19 |
| CHM-104 |
3"X½X1 |
75X12X25 |
| CHM-105 |
4"X½X1 |
100X12X25 |
| CHM-106 |
3"X¾X1 |
75X19X25 |
| CHM-107 |
4"X¾X1 |
100X19X25 |
| 3/32" (THICKNESS 2.5MM) |
| CHH-108 |
3"X½X¾ |
75X12X19 |
| CHH-109 |
4"X½X¾ |
100X12X19 |
| CHH-110 |
3"X½X1 |
75X12X25 |
| CHH-111 |
4"X½X1 |
100X12X25 |
| CHH-112 |
3"X¾X1 |
75X19X25 |
| CHH-113 |
4"X¾X1 |
100X19X25 |
| 3/32"(THICKNESS 2MM) |
| BHM-114 |
3"X½ |
75X12 |
| BHM-115 |
3"X3/8 |
75X9 |
| BHM-116 |
3"X5/8 |
75X16 |
| BHM-117 |
3"X¾ |
75X19 |
| BHM-118 |
4"X¾ |
100X19 |
| BHM-119 |
3"X7/8 |
100X22 |
| BHM-120 |
4"X7/8 |
100X22 |
| BHM-121 |
3"X1 |
75X25 |
| BHM-122 |
4"X1 |
100X25 |
| 3/32"( THICKNESS 2.5MM) |
| BHH-123 |
3"X¾ |
75X19 |
| BHH-124 |
4"X¾ |
100X19 |
| BHH-125 |
3"X7/8 |
75X22 |
| BHH-126 |
4"X7/8 |
100X22 |
| BHH-127 |
3"X1 |
75X25 |
| BHH-128 |
4"X1 |
100X25 |
|
| Finish: Natural, Buff, Antique, S. S., Lacquer, Satin, Golden, Copper |
|
|
|
|
|
|
|
|
Brass Mini Railway Hinges
|
|
| CODE NO. |
SIZE |
| INCH |
MM |
| 3/32"(THICKNESS 2MM) |
| RHM-129 |
2.½"X¾ |
62.5X19 |
| RHM-130 |
3"X¾ |
75X19 |
| RHM-131 |
4"X¾ |
100X19 |
| RHM-132 |
3"X7/8 |
75X22 |
| RHM-133 |
4"X7/8 |
100X22 |
| 3/32"( THICKNESS 2.5MM) |
| RHM-134 |
2.½"X¾ |
62.5X19 |
| RHM-135 |
3"X¾ |
75X19 |
| RHM-136 |
4"X¾ |
100X19 |
| RHM-137 |
3"X7/8 |
75X22 |
| RHM-138 |
4"X7/8 |
100X22 |
|
| Finish: Natural, Buff, Antique, S. S., Lacquer, Satin, Golden, Copper |
|
|
|
|
|
|
|
|

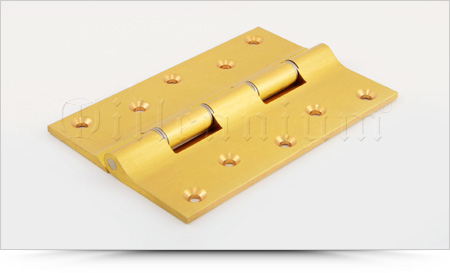

Brass Railway Hinges
 |
|
| CODE NO. |
SIZE |
| INCH |
MM |
| 1/8"(THICKNESS 3MM) |
| RH-139 |
3"X7/8 |
75X22 |
| RH-140 |
4"X7/8 |
100X22 |
| RH-141 |
3"X1 |
75X25 |
| RH-142 |
4"X1 |
100X25 |
| RH-143 |
5"X1 |
125X25 |
| RH-144 |
4"X1.1/8 |
100X28 |
| RH-145 |
5"X1.18 |
125X28 |
| RH-146 |
6"X1.1/8 |
150X28 |
| 5/32" (THICKNESS 3.5MM) |
| RHM-147 |
4"X1.1/8 |
100X28 |
| RHM-148 |
5"X1.1/8 |
125X28 |
| RHM-149 |
6"X5/32 |
150X28 |
| 5/32" (THICKNESS 4MM) |
| RHH-150 |
4"X1.1/8 |
100X28 |
| RHH-151 |
5"X1.18 |
125X28 |
| RHH-152 |
6"X1.1/8 |
150X28 |
| RHH-153 |
4"X1.1/4 |
100X31 |
| RHH-154 |
5"X1.1/4 |
125X31 |
| RHH-155 |
6"X1.1/4 |
150X31 |
| 3/16" (THICKNESS 4.5MM) |
| RHEX-156 |
4"X1.1/4 |
100X31 |
| RHEX-157 |
5"X1.1/4 |
125X31 |
| RHEX-158 |
6"X1.1/4 |
150X31 |
| RHEX-159 |
4"X1.½ |
100X38 |
| RHEX-160 |
5"X1.½ |
125X38 |
| RHEX-161 |
6"X1.½ |
150X38 |
| RHEX-162 |
8"X1.½ |
175X38 |
| RHEX-163 |
10"X1.½ |
200X38 |
| RHEX-164 |
12"X1.½ |
225X38 |
|
| Finish: Natural, Buff, Antique, S. S., Lacquer, Satin, Golden, Copper |
|
|
|
|
|
|
|
|
Brass RAILWAY HINGES WITH S.S.WASHER
 |
|
| CODE NO. |
SIZE |
| INCH |
MM |
| 1/8"(THICKNESS 3MM) |
| RSW-165 |
3"X7/8 |
75X22 |
| RSW-166 |
4"X1 |
100X25 |
5/32", 3/16"
(THICKNESS 3MM, 4MM, 4.5MM) |
| RSW-167 |
4"X1.1/8 |
100X28 |
| RSW-168 |
5"X1.1/8 |
125X28 |
| RSW-169 |
5"X1.1/4 |
125X31 |
| RSW-170 |
5"X1.½ |
125X3/8 |
|
| Finish: Natural, Buff, Antique, S. S., Lacquer, Satin, Golden, Copper |
|
|
|
|
|
|
|
|

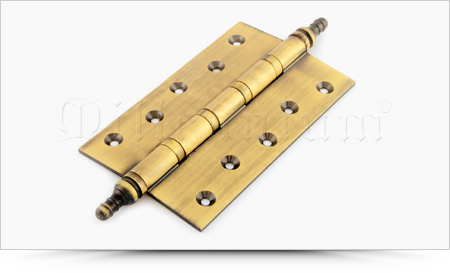

Brass Tips Type BEARING HINGES

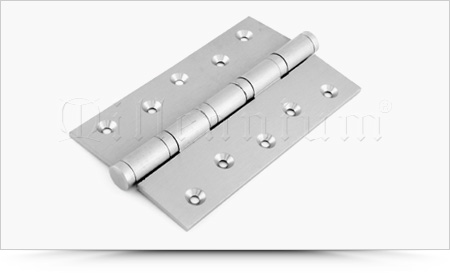

Brass Cap Type BEARING HINGES
|
|
| CODE NO. |
SIZE |
| INCH |
MM |
| CAP / TIPS |
| THICKNESS 2.5 MM |
| BE182/183 |
3"X2 |
75X60 |
| THICKNESS 3 MM |
| BE 184/185 |
3"X2.5 |
75X63 |
| BE186/187 |
4"X2.5 |
75X63 |
| BE 188/189 |
4"X3 |
100X75 |
| BE190/191 |
5"X3 |
125X75 |
| BE 192/193 |
6"X3 |
150X75 |
| THICKNESS 4MM |
| BE 194/195 |
4"X3 |
100X75 |
| BE 196/197 |
5"X3 |
125X75 |
| BE 198/199 |
6"X3 |
150X75 |
| BE 200/201 |
4"X3.5 |
100X88 |
| BE 202/203 |
5"X3.5 |
125X88 |
| BE 204/205 |
6"X3.5 |
150X88 |
| THICKNESS 5MM |
| BE 206/207 |
5"X3 |
125X75 |
| BE 208/209 |
6"X3 |
150X75 |
| BE 210/211 |
5"X3.5 |
125X88 |
| BE 212/213 |
6"X3.5 |
150X88 |
| BE 214/215 |
8"X3.5 |
200X8 |
|
| Finish: Natural, Buff, Antique, S. S., Lacquer, Satin, Golden, Copper |
|
|
|
|
|
|
|
|

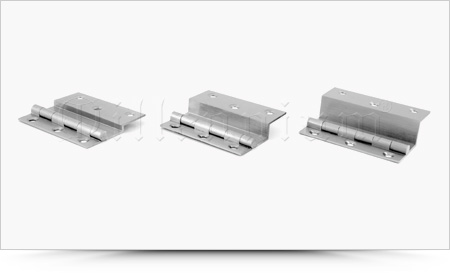

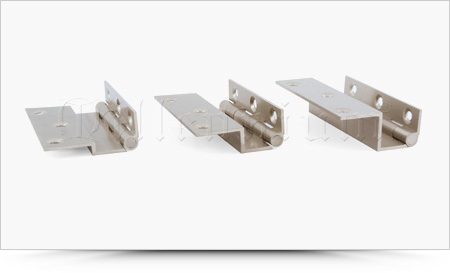

Brass "L" Type Hinges
|
|
| CODE NO. |
SIZE |
| INCH |
MM |
| 6MM DEEP (THICKNESS 2.5MM) |
| LH-216 |
3"X½X1.½ |
75X12X38 |
| LH-217 |
4"X½X1.½ |
100X12X38 |
| LH-218 |
3"X¾X1.¾ |
75X19X44 |
| LH-219 |
4"X¾X1.¾ |
100X19X44 |
| LH-220 |
3"X1X2 |
75X25X50 |
| LH-221 |
4"X1X2 |
100X25X50 |
| 12MM DEEP (THICKNESS 2.5MM) |
| LH-222 |
3"X½X1.½ |
75X12X38 |
| LH-223 |
4"X½X1.½ |
100X12X38 |
| LH-224 |
3"X¾X1.¾ |
75X19X44 |
| LH-225 |
4"X¾X1.¾ |
100X19X44 |
| LH-226 |
3"X1X2 |
75X25X50 |
| LH-227 |
4"X1X2 |
100X25X50 |
| 19MM DEEP (THICKNESS 2.5MM) |
| LH-228 |
3"X½X1.½ |
75X12X38 |
| LH-229 |
4"X½X1.½ |
100X12X38 |
| LH-230 |
3"X¾X1.¾ |
75X19X44 |
| LH-231 |
4"X¾X1.¾ |
100X19X44 |
| LH-232 |
3"X1X2 |
75X25X50 |
| LH-233 |
4"X1X2 |
100X25X50 |
| 25MM DEEP (THICKNESS 2.5MM) |
| LH-234 |
3"X½X1.½ |
75X12X38 |
| LH-235 |
4"X½X1.½ |
100X12X38 |
| LH-236 |
3"X¾X1.¾ |
75X19X44 |
| LH-237 |
4"X¾X1.¾ |
100X19X44 |
| LH-238 |
3"X1X2 |
75X25X50 |
| LH-239 |
4"X1X2 |
100X25X50 |
|
| Finish: Natural, Buff, Antique, S. S., Lacquer, Satin, Golden, Copper |
|
|
|
|
|
|
|
|

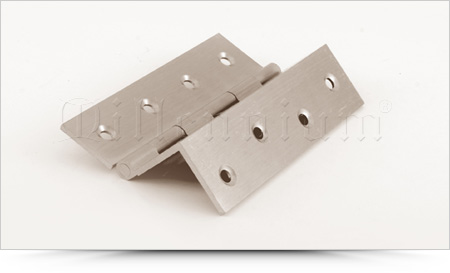

Brass "W" Type Hinges
|
|
CODE
NO. |
SIZE |
| INCH |
MM |
| "W" HINGES |
| WH-240 |
2" REGULAR |
50MM |
| WH-241 |
3" REGULAR |
75MM |
| WH-242 |
4" REGULAR |
100MM |
| "W" HINGES (2 in 1) |
| WH-243 |
3X½X1.½X6MM |
75X12X38X6 |
| WH-244 |
4X½X1.½X6MM |
100X12X38X6 |
| WH-245 |
3X½X1.½X12MM |
75X12X38X12 |
| WH-246 |
4X½X1.½X12MM |
100X12X38X12 |
| WH-247 |
3X½X1.½X19MM |
75X12X38X19 |
| WH-248 |
4X½X1.½X19MM |
100X12X38X19 |
| WH-249 |
3X¾X1.¾X6MM |
75X19X45X6 |
| WH-250 |
4X¾X1.¾X6MM |
100X19X45X6 |
| WH-251 |
3X¾X1.¾X12MM |
75X19X45X12 |
| WH-252 |
4X¾X1.¾X12MM |
100X19X45X12 |
| WH-253 |
3X¾X1.¾X19MM |
75X19X45X19 |
| WH-254 |
4X¾X1.¾X19MM |
100X19X45X19 |
| WH-255 |
3X1X2X6MM |
75X25X50X6 |
| WH-256 |
4X1XX2X6MM |
100X25X50X6 |
| WH-257 |
3X1X2X12 MM |
75X25X50X12 |
| WH-258 |
4X1X2X12MM |
100X25X50X12 |
| WH-259 |
3X1X2X19MM |
75X25X50X19 |
| WH-260 |
4X1X2X19MM |
100X25X50X19 |
|
| Finish: Natural, Buff, Antique, S. S., Lacquer, Satin, Golden, Copper |
|
|
|
|
|
|
|
|

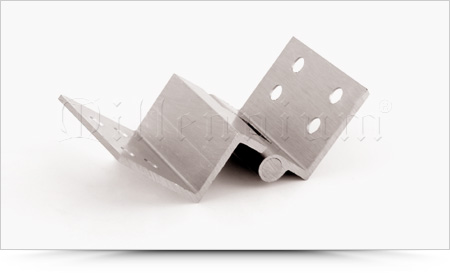

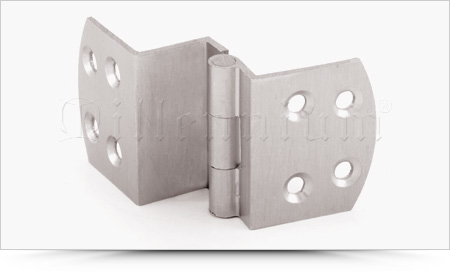

Brass "Z" Type Hinges
 |
|
| CODE NO. |
SIZE |
| INCH |
MM |
| ZH-261 |
3X1/2X12 MM |
75x12 |
| ZH-262 |
4X1/2X12MM |
100x12 |
| ZH-263 |
3X3/4X18MM |
75x19 |
| ZH-264 |
4X3/4X18MM |
100x19 |
| ZH-265 |
3X1X25MM |
75x25 |
| ZH-266 |
4X1X25MM |
100x25 |
|
|
|
|
Finish: Natural, Buff, Antique, S. S., Lacquer, Satin, Golden, Copper |
|
